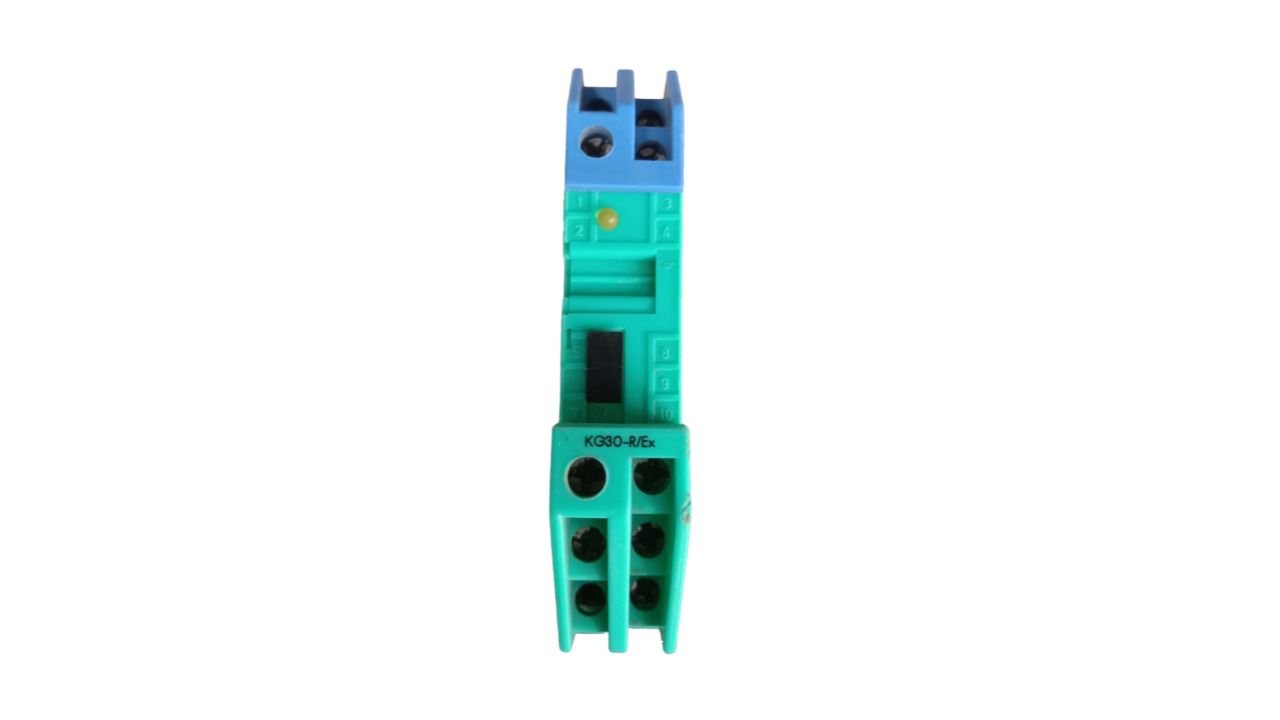

Pepperl+Fuchs KG30-R/Ex safety barrier from the K-Series, Part No. 154555.
Key features and specifications:
Product Type: Safety Barrier.
Manufacturer: Pepperl+Fuchs.
Model: KG30-R/Ex.
Control Circuit: EEx ia IIC, PTB Nr. Ex-81/2083X, NAMUR DIN 19234.
Operating Values: Uo ca. 8V, Jx ca. 8mA.
Maximum Values: Uo ≤ 12.7V, Jk ≤ 20mA, P ≤ 63.5mW.
Application: Cc ≤ 415nF, Lo ≤ 2mH.
Output (Ausgang): U ≤ 250VAC, J ≤ 3A, P ≤ 220VA, cos φ ≥ 0.3.
Power Supply (Netz/supply): 24VDC ± 15% ≤ 10%.
Pepperl+Fuchs KG30-R/Ex safety barrier from the K-Series, Part No. 154555.
Key features and specifications:
Product Type: Safety Barrier.
Manufacturer: Pepperl+Fuchs.
Model: KG30-R/Ex.
Control Circuit: EEx ia IIC, PTB Nr. Ex-81/2083X, NAMUR DIN 19234.
Operating Values: Uo ca. 8V, Jx ca. 8mA.
Maximum Values: Uo ≤ 12.7V, Jk ≤ 20mA, P ≤ 63.5mW.
Application: Cc ≤ 415nF, Lo ≤ 2mH.
Output (Ausgang): U ≤ 250VAC, J ≤ 3A, P ≤ 220VA, cos φ ≥ 0.3.
Power Supply (Netz/supply): 24VDC ± 15% ≤ 10%.
